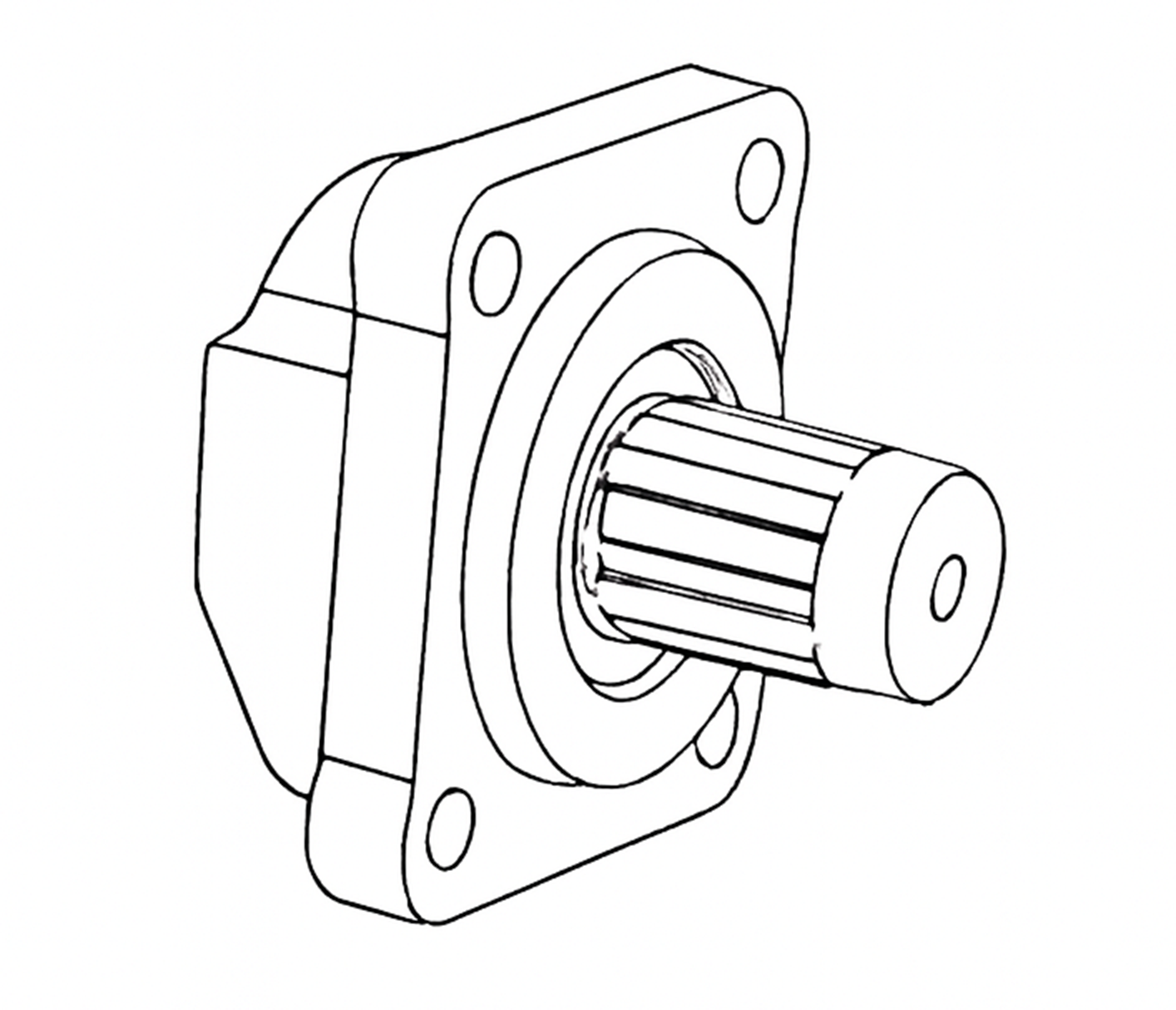

ISO ADAPTER – 4X4 EXTENSION WITH BEARING (LONG MODEL)

(HIGH TORQUE TRANSMISSION – BEARING SUPPORTED – FOR ISO FLANGED PTO SYSTEMS)

This special type ISO 4x4 extension adapter with bearing provides both distance extension and bearing-supported rotational stability in the transition from PTO output to pump or cardan shaft connection. It is especially preferred in 4-bolt PTO flanges compliant with ISO 7653 standards when there is not enough clearance between the pump body and the vehicle chassis and in high-speed applications. Thanks to its bearing-supported structure, vibration is reduced, proper shaft support is provided, and shaft life is extended. It is generally used in tipper trucks, sweeper vehicles, vacuum trucks, and mobile hydraulic systems.

Technical Specifications

Adapter type: ISO 4x4 extension adapter with bearing (long model)
Input connection: 4-hole ISO flange (ISO 7653)
Output connection: 4-hole ISO flange (same standard)
Body length: 100 mm – 150 mm (depending on model variant)
Bearing type: Single-row or double-row ball bearing (depending on load and speed requirements)
Body material: Heat-treated steel / Optional aluminum
Maximum torque capacity: 600 Nm – 800 Nm
Maximum working pressure: 250 bar
Sealing: O-ring supported sealing structure + bearing seal
Mounting type: Bolted flange connection + centering ring
Standards: Compatible with ISO 7653 / DIN 5482
Optional features:
Conical centering ring
Protective cover
Bearing lubrication point

Advantages

Increases pump distance in ISO flanged PTO outputs
Provides rotational stability thanks to bearing-supported structure
High torque transmission and bearing support
Creates a safe clearance between the pump and chassis
Reduces vibration and extends shaft life
Fully compatible with DIN and ISO connection standards
Safe solution for mobile applications (tipper, sweeper, vacuum truck)
Maintenance-friendly structure and bearing access point
System compatibility with different length and bearing type options
